Jaytech Control is mainly into the business of electrical panel manufacturing like PCC, PDB, MCC & automation panels, built to customer needs.

Jaytech Control also provides services like panel installation, commissioning, all kinds of preventive & breakdown maintenance work, cabling work, earthing work and office electrification work, etc.

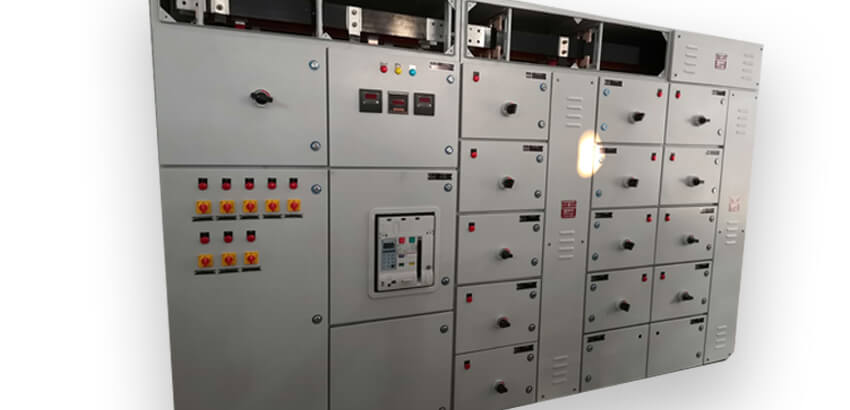

PCC Panel

Capacity : Up to 6300A
PCC PanelPCC Panel
Features
  • Construction Type : Modular / Fixed Type, Draw out / Non Draw out, Indoor and Outdoor.
  • Operation : Single front and Double front.
  • System Voltage: 600V, Ambient Temp.: 50° C.
  • Integrate For protection : Over Load, Earth Fault, Under Voltage etc.
  • Integrate Metering, Degree of protection (IP 54 / 55 / 65) as required.
  • IEC degree of internal separation – Form; as required.

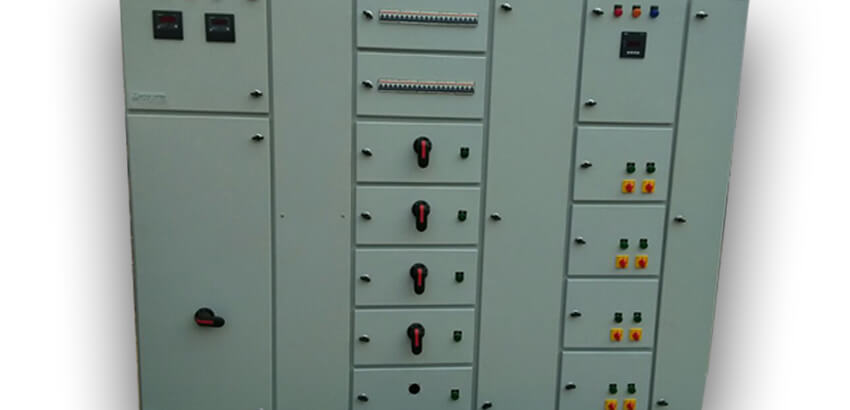

PDB Panel

Power Distribution Board
PDB Panel
Features
  • Construction Type : Modular / Fixed Type, Indoor and Outdoor.
  • Power distribution for the various number of circuits, as per customer requirement.
  • Integrate Metering, Degree of protection (IP 54 / 55) as required.

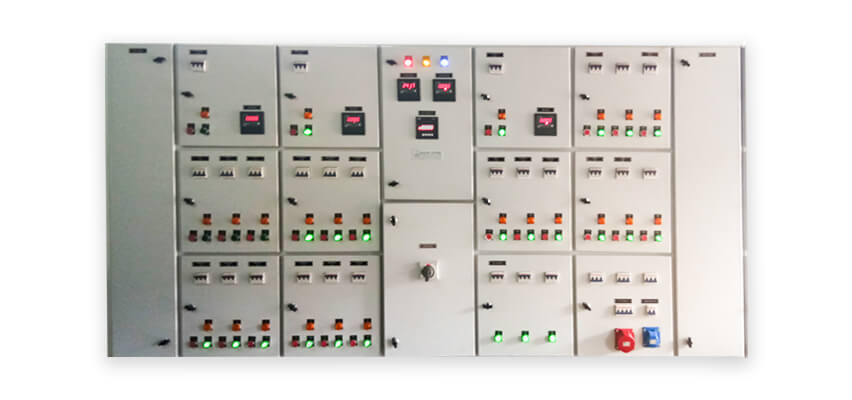

MCC (Motor Control Center) Panel

Motor Rating : 0.5HP to 500HP
MCC PanelMCC Panel
Features
  • Construction Type : Modular / Fixed Type, Draw out / Non Draw out, Indoor and Outdoor.
  • Type of starting : Direct On Line (DOL), Star Delta, Auto Transformer, Soft Starter.
  • Operation : Single front and Double front, Local Remote.
  • System Voltage : 440V. Ambient Temp.: 50° C.
  • Integrate For protection : Over Load, Earth Fault, Under Voltage etc.
  • Integrate Metering, Degree of protection (IP 54 / 55 / 65) as required.
  • IEC degree of internal separation – Form; as required.

APFC (Automatic Power Factor Correction) Panel

Capacity : As Required
APFC Panel
Features
  • Construction Type : Modular / Fixed Type, Draw out / Non Draw out, Indoor and Outdoor.
  • System Voltage : 440V. Ambient Temp.: 50° C.
  • Outgoing Switching Type : MCB + Capacitor Duty Contactor, MPP / APP Duty Field, Harmonic Filter, Thyristor.
  • Integrate Metering, Degree of protection (IP 54 / 55) as required.
  • IEC degree of internal separation – Form; as required.

Synchronous Panel

Capacity : As Required
Synchronous Panel
Features
  • Construction Type : Modular / Fixed Type, Draw out / Non Draw out, Indoor and Outdoor.
  • System Voltage : 440V. Ambient Temp.: 50° C.
  • Integrate Metering, Degree of protection (IP 54 / 55) as required.
  • IEC degree of internal separation – Form; as required.

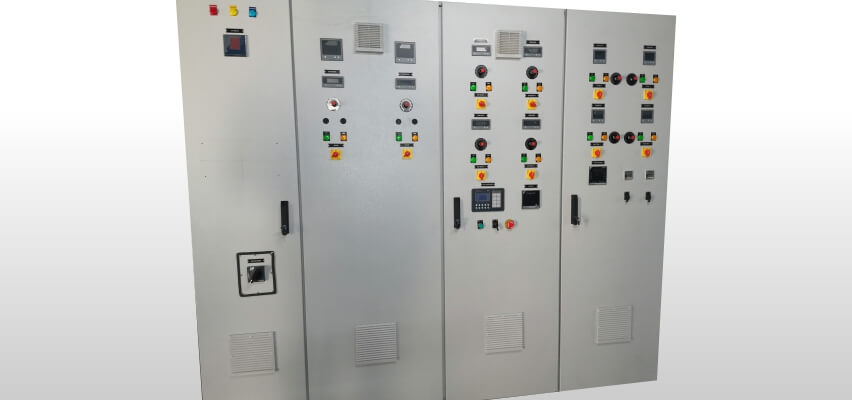

PLC Panel

IO Capacity : As Required  |  Remote IO : As Required
PLC Panel
Features
  • Communication Channel : RS 232, Modbus TCP/IP, Ethernet and wireless etc.
  • System Voltage : 230V. Ambient Temp.: 50° C / 55° C.
  • Integrate Metering, Annunciation, Degree of protection (IP 54 / 55) as required.

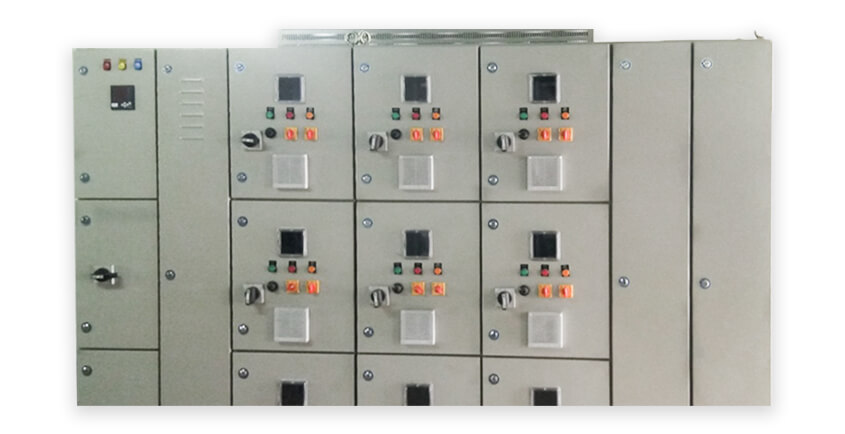

VFD Panel

Capacity : Up to 300KW
VFD PanelVFD Panel
Features
  • Operation : Single front and Double front.
  • Degree of protection IP : As per customer requirement.

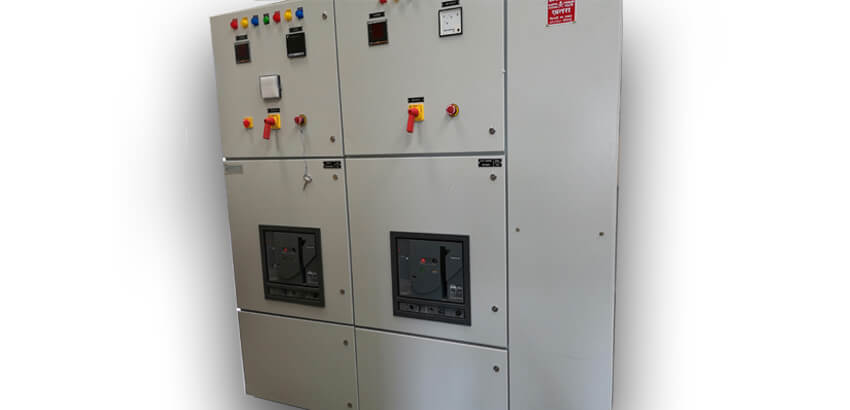

AMF Panel

Auto Mains Failure Panel
AMF Panel
Features
  • Automatic mains failure detection with DG auto start / stop.
  • Integrate Metering and protection, Degree of protection (IP 54 / 55) as required.

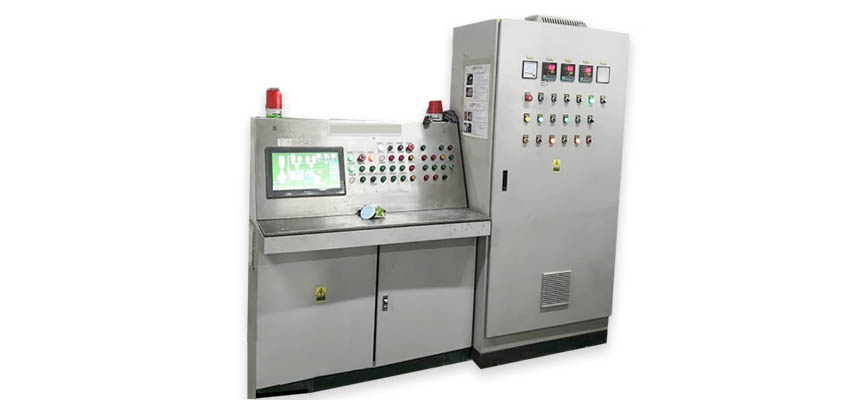

Machine Automation

Custom Drive & Servo Solutions
Machine Automation
Features
  • We have specialty for conversion from mechanical / DC systems to VFD or servo systems.
  • Printing machine.
  • Slitting machine.

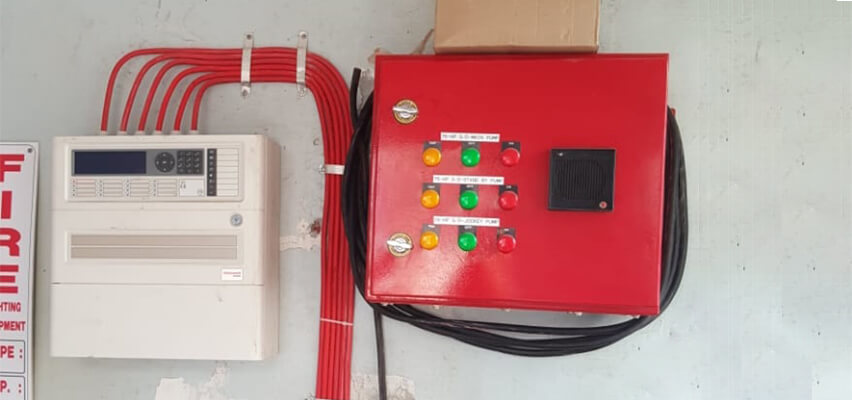

Fire Panel

Fire Detection & Control
Fire PanelFire Panel
Features
  • Fire alarm and control panel as per site requirement.
  • Integrate annunciation and protection, Degree of protection as required.

Need a Custom Panel?

Share your specifications — we'll design and manufacture to match.

Request a Quote +91-9427706453
